In-motion rail scale is designed to provide rail wagon weights and train weights quickly, affordably and safely while in transit at a steady speed of up to 15 km/h. It provides an advance over speed warning and is compliant to latest RDSO specifications.
In Motion Rail Weigh Scale
In Motion Rail Weigh Scale
In motion Rail Weigh Scale
In motion Rail Weigh Scale

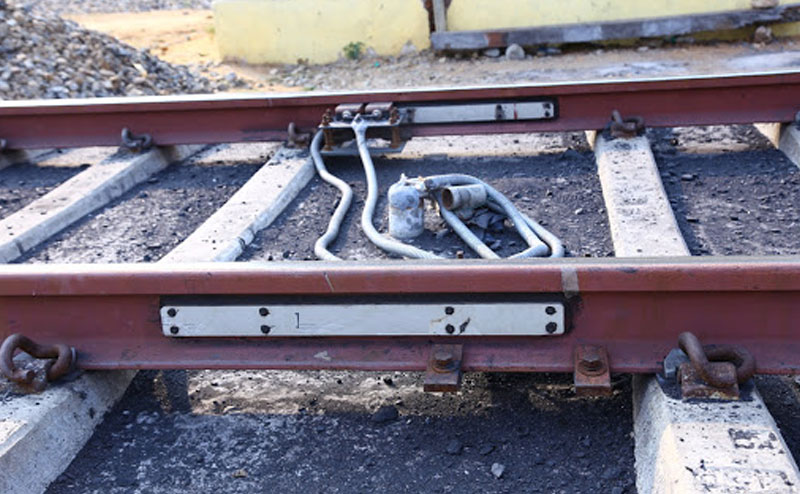

Pit-Less Electronic In-Motion Rail Weigh Bridge.

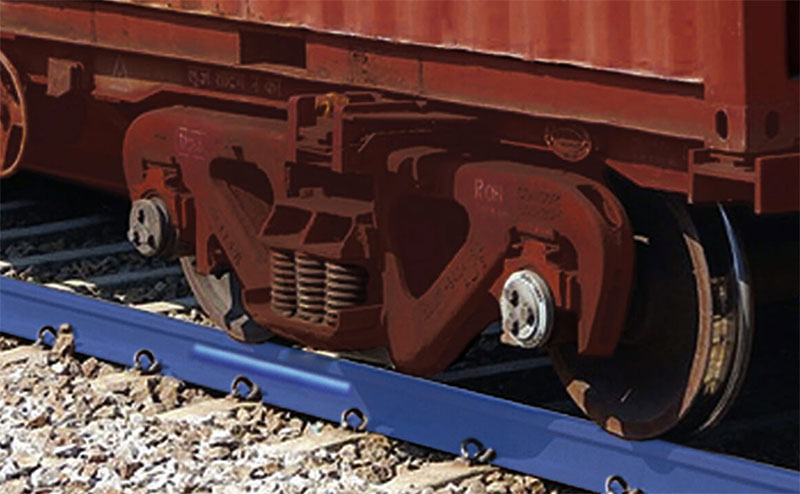

In-motion RAIL weighing is the most time efficient and cost effective method of obtaining railcar weights. This type of system allows a railcar to be weighed as it rolls over the scale and can be accomplished as part of your normal car handling operations. With a properly located scale, this typically results in the ability to obtain railcar weights without any additional time or effort. The microprocessor based track logic cum communication controller with AD Module forms the overall sub-assemblies of the electronics.
Merit is approved by RDSO to supply and maintain In Motion Rail Weigh Bridge.
Merit is the major Indian manufacturer for In-motion railcar weighing systems. Our in-motion systems are proven and working with major clients like NTPC, INDIAN RAILWAY, CIL, CEMENT, OIL REFINERY PLANT, PORT, etc.
Merit is approved by RDSO to supply and maintain In Motion Rail Weigh Bridge.
Merit is the major Indian manufacturer for In-motion railcar weighing systems. Our in-motion systems are proven and working with major clients like NTPC, INDIAN RAILWAY, CIL, CEMENT, OIL REFINERY PLANT, PORT, etc.
Features
- RDSO approved
- Type : Pit-less (Pit type also available)
- Capacity : 0-140 T
- Weighing Speed : Up to 15 km/hr
- Transducers : Strain gauge embedded sensors
- Rail Section : 52 kg / 60kg
- Safe Overload : 150%
- Ultimate Overload : 300%
- Accuracy as per RDSO standards
- In-built surge protection, lightning arrestor and on board temperature sensor.
- Speed : up to 52,000 samples / second
- Powerful 32 bit / 135 MIPS DSP for high speed on-board processing
- Load Cells: Compatible with 1, 2 & 3 mV/V load cells.
- 24 Bit A/D with ±8 million counts
- Software : Dedicated in-motion Wizard software
Other Features
- High speed and accuracy
- Measuring of lateral imbalance of loaded railcars
- Measuring of front/rear bogie lateral imbalance load
- Automatic detection of Railcar RFID Tag
- Automatic identification of wagon and engine
- Anti-roll back up to 65000 Wheels
- Direct print out of rake information
- Advanced over-speed indication
- Automatic direction selection
