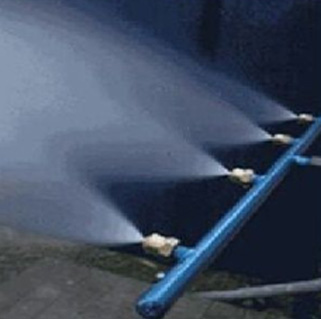

Plain Water Dust Suppression System uses high pressure water which creates a ultra-fine fog consisting of very fine water droplets. These tiny water droplets absorb even the smallest dust particles.

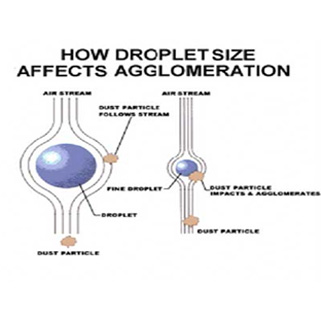

Water droplets increase the agglomeration rates of the dust particle so that they increase in the micron size and settle easily. The increased sizes do not allow dust to remain airborne and hence environment is free of dust. Merit supplies proven dust suppression system for various applications, like loading/unloading area, transfer points of conveyer, etc.
Dust Suppression System
Dust Suppression System
Plain Water Dust Suppression System
Dryfog Dust Suppression System
Unlike conventional water spray or chemical spray systems, Dry Fog is not designed to wet the process material, it only wets the airborne dust. This makes it an ideal solution for dust from moisture sensitive materials such as coke for fuel, copper concentrate, clinker and cement. Moisture addition to the material is typically less than 0.05 percent by weight and many times is undetectable. Dry Fog systems do not require any chemicals to break up
surface tension as its unique nozzle design creates <10 micron size droplets that are of like size to the airborne dust particle.
The fog system is activated just prior to the discharge of material into the hopper/wagon. When the dust-laden air inside the hopper/wagon is displaced by the material being dumped, the fog essentially ‘scrubs’ the displaced dust-laden air. Dust reductions from hoppers/wagon have been measured to remove 96% or more of these particles vs. uncontrolled dumps.
The fog system is activated just prior to the discharge of material into the hopper/wagon. When the dust-laden air inside the hopper/wagon is displaced by the material being dumped, the fog essentially ‘scrubs’ the displaced dust-laden air. Dust reductions from hoppers/wagon have been measured to remove 96% or more of these particles vs. uncontrolled dumps.
